Aac Conductor

Označeni dobavljač provodnika državne mreže, više od 15 godina iskustva na polju provodničkog kabla. Možemo proizvoditi prema različitim standardima kao što su GB (kineski standard), IEC, BS, ASTM, DIN i tako dalje.

Pošaljite upit

Opis

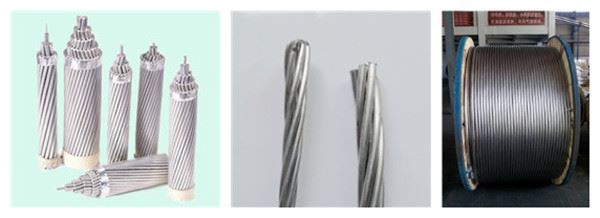

AAC provodnik sa punim nazivom: ALL ALUMINIUM STRANDED CONDUCTOR,

Upišite naziv prema kineskom standardu: JL

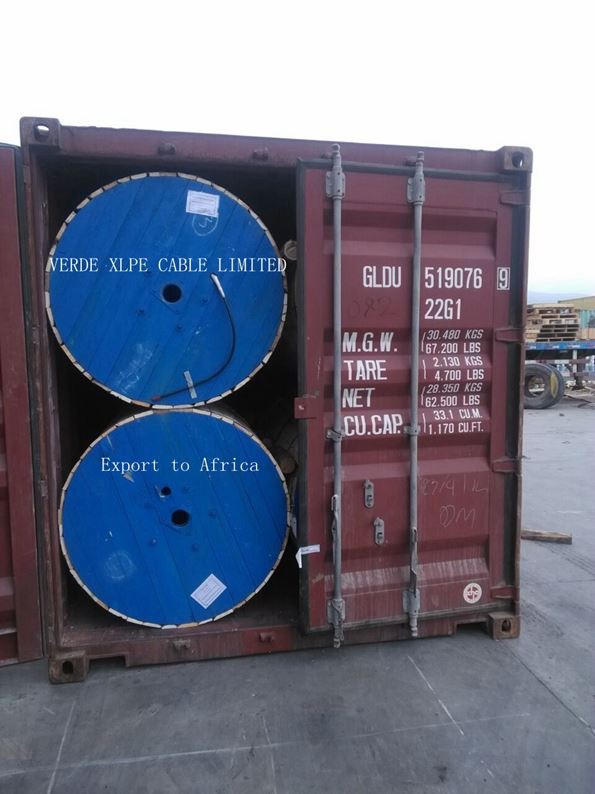

Vrući izvoz u: Filipine, Indoneziju, UAE, Saudijsku Arabiju, Južnu Afriku, Nigeriju, Keniju, mnoge zemlje Afrike

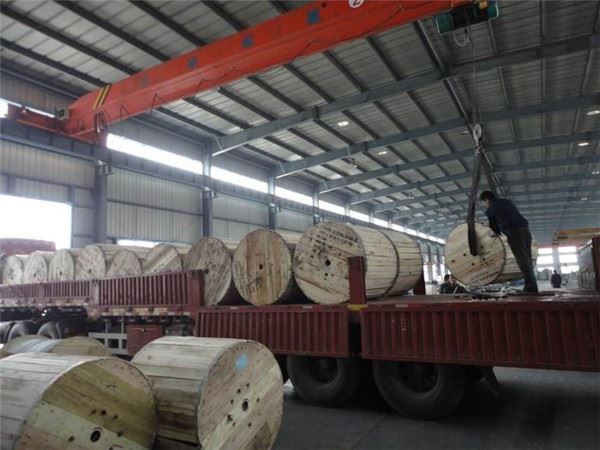

Način pakovanja: drveni bubanj ili drveni čelični bubanj
Aac Conductor Isporuka: 50km proizvodnje najmanje dnevno

Aac provodnik AAC Standard GB /T 1179-2008

Područje	Komadi/Prečnik	Prečnik	Max. otpor Na 20 stepeni	Kalkulacija Force	Težina
mm²	mm	mm	Ω/km	KN	kg/km
10	7/1.35	4.05	2.8633	1.95	27.4
16	7/1.71	5.12	1.7896	3.04	43.8
25	7/2.13	6.40	1.1453	4.50	68.4
40	7/2.70	8.09	0.7158	6.80	109.4
63	7/3.39	10.2	0.4545	10.39	172.3
100	19/2.59	12.9	0.2877	17.00	274.8
125	19/2.89	14.5	0.2302	21.25	343.6
160	19/3.27	16.4	0.1798	26.40	439.8
200	19/3.66	18.3	0.1439	32.00	549.7
250	19/4.09	20.5	0.1151	40.00	687.1
315	37/3.29	23.0	0.0916	51.97	867.9
400	37/3.71	26.0	0.0721	64.00	1102.0
450	37/3.94	27.5	0.0641	72.00	1239.8
500	37/4.15	29.0	0.0577	80.00	1377.6
560	37/4.39	30.7	0.0515	89.60	1542.9
630	61/3.63	32.6	0.0458	100.80	1738.3
710	61/3.85	34.6	0.0407	113.60	1959.1
800	61/4.09	36.8	0.0361	128.00	2207.4
900	61/4.33	39.0	0.0321	144.00	2483.3
1000	61/4.57	41.1	0.0289	160.00	2759.2
1120	91/3.96	43.5	0.0258	179.20	3093.5
1250	91/4.18	46.0	0.0231	200.00	3452.6
1400	91/4.43	48.7	0.0207	224.00	3866.9
1500	91/4.58	50.4	0.0193	240.00	4143.1

AAC

Standard: ASTM B231

Code Name	Ukupna površina		Navoj i prečnik žice mm	Linearna masa kg/km	Ukupni prečnik mm	Nominalno prekidno opterećenje daN	Max. DC otpor na 20 stepeni Manje ili jednako Ω/k
Code Name	AWG ili MCM	mm²	Navoj i prečnik žice mm	Linearna masa kg/km	Ukupni prečnik mm	Nominalno prekidno opterećenje daN	Max. DC otpor na 20 stepeni Manje ili jednako Ω/k
Peachbell	6	13.29	7/1.554	37	4.67	249	2.1692
Rose	4	21.16	7/1.961	58	5.89	396	1.3624
Iris	2	33.61	7/2.474	93	7.42	597	0.8577
Maćuhica	1	42.39	7/2.776	117	8.33	732	0.6801
Poppy	1/0	53.48	7/3.119	147	9.36	873	0.5390
Aster	2/0	67.42	7/3.503	186	10.51	1100	0.4276
Phlox	3/0	85.03	7/3.932	234	11.80	1347	0.3390
Oxlip	4/0	107.23	7/4.417	296	13.26	1698	0.2688
Valerijana	250	126.71	19/2.931	349	14.57	2062	0.2275
Sneezewort	250	126.71	7/4.80	349	14.4	2007	0.2275
Laurel	266.8	135.16	19/3.01	373	15.05	2200	0.2133
tratinčica	266.8	135.16	7/4.96	373	14.9	2141	0.2133
Božur	300	152.0	19/3.193	419	15.97	2403	0.1896
Tulip	336.4	170.45	19/3.381	470	16.91	2695	0.1691
Narcis	350	177.35	19/3.447	489	17.24	2804	0.1625
Canna	397.5	201.42	19/3.673	555	18.36	3184	0.1431
Goldentuft	450	228	19/3.909	629	19.55	3499	0.1264
Syringa	477	241.68	37/2.882	666	20.19	3849	0.1193
Kosmos	477	241.68	19/4.023	666	20.12	3708	0.1193
Zumbul	500	253.35	37/2.951	698	20.65	4035	0.1138
Zinnia	500	253.35	19/4.12	698	20.6	3888	0.1138
Dahlia	556.5	282	19/4.346	777	21.73	4327	0.1022
Imela	556.5	282	37/3.114	777	21.79	4362	0.1022
Meadowsweet	600	304	37/3.233	838	22.63	4703	0.0948
Orhideja	636	322.25	37/3.33	888	23.31	4985	0.0894
Heuchera	650	329.35	37/3.366	908	23.56	5095	0.0875
Zastava	700	354.71	61/2.72	978	24.48	5146	0.0813

AAC provodnik Standard: ASTM B231

Code Name	Ukupna površina		Navoj i prečnik žice mm	Ukupni prečnik mm	Linearna masa kg/masa	Nominalno prekidno opterećenje daN	Max. DC otpor na 20 stepeni Manje ili jednako Ω/km
Code Name	AWG ili MCM	mm²	Navoj i prečnik žice mm	Ukupni prečnik mm	Linearna masa kg/masa	Nominalno prekidno opterećenje daN	Max. DC otpor na 20 stepeni Manje ili jednako Ω/km
Verbena	700	354.71	37/3.493	24.45	978	5487	0.0813
Nasturtium	715.5	362.58	61/2.75	24.76	1000	5874	0.0795
Violet	715.5	362.58	37/3.533	24.74	1000	5609	0.0795
Cattail	750	380	61/2.817	25.35	1048	5985	0.0759
Petunija	750	380	37/3.617	25.32	1048	5875	0.0759
Lilac	795	402.84	61/2.90	26.11	1111	6345	0.0715
Arbutus	795	402.84	37/3.724	26.06	1111	6232	0.0715
Snapdragon	900	456.06	61/3.086	27.78	1257	6978	0.0632
Cockscomb	900	456.06	37/3.962	27.73	1257	6848	0.0632
Goldenrod	954	483.42	61/3.177	28.6	1333	7896	0.0596
Magnolija	954	483.42	37/4.079	28.55	1333	7258	0.0596
Camellia	1000	506.71	61/3.251	29.36	1397	7753	0.0569
Hawkweed	1000	506.71	37/4.176	29.23	1397	7608	0.0569
Larkspur	1033.5	523.68	61/3.307	29.76	1444	8012	0.0550
Bluebell	1033.5	523.68	37/4.244	29.72	1444	7863	0.0550
Neven	1113	563.93	61/3.432	30.89	1555	8628	0.0511
Glog	1192.5	604.26	61/3.551	31.05	1666	9245	0.0477
Narcis	1272	644.51	61/3.668	33.02	1777	9861	0.0477
Columbine	1351.5	684.84	61/3.78	34.01	1888	10478	0.0421
Karanfil	1431	725.10	61/3.89	35.03	1999	10768	0.0398
Gladiolus	1510.5	765.35	61/4.00	35.09	2110	11365	0.0376
Coreopsis	1590	805.68	61/4.099	36.51	2221	11964	0.0358
Jessamine	1750	886.71	61/4.302	38.72	2445	13168	0.0325
Cowslip	2000	1013.42	91/3.76	41.40	2791	15300	0.0285
Lupin	2500	1266.67	91/4.21	46.30	3524	18700	0.0230
Trillium	3000	1520.13	127/3.90	50.75	4232	22500	0.0192
Bluebonnet	3500	1773.50	127/4.21	54.80	4985	26200	0.0166

AAC standard: BS215, dio 1

Nominalno Alum Područje mm²	Stranding i žice prečnika mm	Sectional Area mm²	Pribl. Težina Kg/km	Ukupni prečnik mm	Max..DC Otpor Na 20 stepeni Manje ili jednako Ω/km	Izračunato lomno opterećenje da N	Final Modul Of Elasticity hbar	Koeficijent linearne ekspanzije / stepen
22	7/2.06	23.33	64	6.18	1.227	399	5900	23×10﹣⒍
25	3/3.35	26.40	73	7.2	1.081	411	5900	23×10﹣⒍
25	7/2.21	26.8	73	6.6	1.066	459	5900	23×10﹣⒍
30	3/3.66	31.6	86	7.9	0.9082	486	5900	23×10﹣⒍
35	7/2.59	37.0	101	7.8	0.7762	603	5900	23×10﹣⒍
40	7/2.79	42.8	117	8.4	0.6689	687	5900	23×10﹣⒍
50	7/3.10	52.83	145	9.30	0.5419	828	5900	23×10﹣⒍
60	7/3.40	63.55	174	10.20	0.4505	990	5900	23×10﹣⒍
70	7/3.66	73.7	202	11.0	0.3881	1134	5900	23×10﹣⒍
75	7/3.78	78.5	215	11.4	0.3644	1194	5900	23×10﹣⒍
80	7/3.91	84.1	230	11.7	0.3406	1278	5900	23×10﹣⒍
90	7/4.17	95.6	262	12.5	0.2994	1453	5900	23×10﹣⒍
100	7/4.39	106.0	290	13.17	0.2702	1600	5900	23×10﹣⒍
100	19/2.67	106.0	293	13.4	0.2704	1742	5600	23×10﹣⒍
125	7/4.90	132.0	361	14.7	0.2169	1944	5900	23×10﹣⒍
150	7/5.36	157.9	432	16.1	0.1818	2385	5900	23×10﹣⒍
150	19/3.25	157.9	434	16.25	0.1825	2570	5600	23×10﹣⒍
175	19/3.53	186	512	17.7	0.1547	2863	5600	23×10﹣⒍
200	19/3.78	213.2	587	18.9	0.1349	3240	5600	23×10﹣⒍
225	19/3.99	236.9	652	20.0	0.1211	3601	5600	23×10﹣⒍
250	19/4.22	265.7	731	21.10	0.1083	4040	5600	23×10﹣⒍
300	19/4.65	322.7	888	23.25	0.08916	4875	5600	23×10﹣⒍
350	37/5.00	373.2	1027	25.0	0.07711	5637	5600	23×10﹣⒍
350	19/3.58	373.3	1029	25.1	0.07741	5745	5600	23×10﹣⒍
400	37/5.36	428.5	1179	26.8	0.06710	6473	5600	23×10﹣⒍
400	37/3.78	415.2	1145	26.46	0.06944	6310	5600	23×10﹣⒍
450	37/4.09	486.9	1342	28.6	0.05931	7401	5600	23×10﹣⒍
500	37/4.27	529.5	1460	29.9	0.05441	7998	5600	23×10﹣⒍
600	37/4.65	628.6	1733	32.6	0.04588	9495	5600	23×10﹣⒍
750	37/5.23	794.6	2191	36.6	0.03627	12010	5600	23×10﹣⒍

AAC provodnik Standard: DIN 48201

Nominalno Alum mm²	Izračunato Područje mm²	Stranding i žice prečnika mm	Ukupni prečnik mm	Max.DC Otpor Na 20 stepeni Manje ili jednako Ω/km	Izračunato lomno opterećenje daN	Pribl. Težina kg/km
16	15.89	7/1.70	5.1	1.8018	290	44
25	24.25	7/2.10	6.3	1.1808	425	67
35	34.36	7/2.50	7.5	0.8332	585	94
50	49.48	7/3.00	9.0	0.5786	810	135
50	48.36	19/1.80	9.0	0.5950	860	133
70	65.82	19/2.10	10.5	0.4371	1150	181
95	93.27	19/2.50	12.5	0.3084	1595	256
120	117.00	19/2.80	14.0	0.2459	1910	322
150	147.10	37/2.25	15.2	0.1960	2570	406
185	181.60	37/2.50	17.5	0.1587	3105	501
240	242.54	61/2.25	20.2	0.1191	4015	670
300	299.43	61/2.50	22.5	0.09650	4850	827
400	400.14	61/2.89	26.0	0.07221	6190	1105
500	499.83	61/3.23	29.1	0.05781	7600	1381
625	626.20	91/2.96	32.6	0.04625	9690	1733
800	802.10	91/3.35	36.8	0.03611	12055	2219
1000	999.71	91/3.74	41.1	0.02897	14845	2766
